            • Fully Automated Liquid Nitrogen Freezer Mill
              •

            • DHFSTPRP-24IN
              •

            • It can process up to 24 samples simultaneously with a maximum processing capacity of 15 seconds.
              •











            • DHFSTPRP-24IN
              •

            • Fully Automated Liquid Nitrogen Freezer Mill
              •

            • It can process up to 24 samples simultaneously with a maximum processing capacity of 15 seconds.
              •

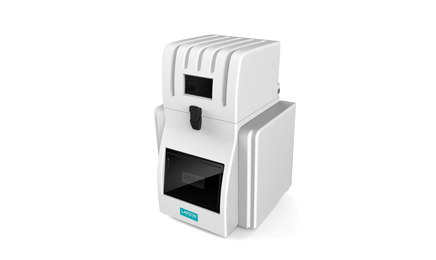

                        DHFSTPRP-24IN Fully Automated Liquid Nitrogen Freezer Mill is a special, fast, high-efficiency, multi-tube homogenization system that extracts and purifies raw DNA, RNA, and proteins from any source, including soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, and paleontological specimens.




















						Product Features





						Compared with other sample preparation methods currently available, the DDHFSTPRP-24IN Fully Automated Liquid Nitrogen Freezer Mill has the advantages of wide applicability, high efficiency, and flexibility. The system avoids the many drawbacks of traditional methods such as grinding, homogenization, and ultrasonic treatment, which are laborious, time-consuming, and inefficient. It can efficiently, quickly, and stably lyse and purify nucleic acids and proteins from various types of samples.





















							Product Applications





							Sample Types for Grinding:





							1. Plant Tissues: Roots, stems, leaves, flowers, fruits, seeds, etc.





							2. Animal Tissues: Brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph node, muscle, bone, etc.





							3. Fungi and Bacteria: Yeasts, E. coli, etc.





							4. Food and Drugs: All kinds of food, tablets, etc.





							5. Volatile Samples: Coal, oil shale, wax products, etc.





							6. Plastics and Polymers: PE, PS, textiles, resins, etc.





							homogenizer_tissuelyser





							homogenizer_tissuelyser





							DHFSTPRP-24IN Fully Automated Liquid Nitrogen Freezer Mill uses a special vertical up-down integrated vibration mode, which achieves rapid grinding of samples through the high-frequency reciprocal vibration, impact, and shear of grinding beads (zirconia, steel, glass, ceramic). This ensures the samples are fully and uniformly ground, and have better sample repeatability with no cross-contamination between samples.

























								High efficiency with multiple operations and good results

								Efficient and quick work can be completed within 1 minute for grinding 2x24, 2x48, and 4x96 samples. It saves time and effort, and the differences between batches and within batches are small. The extracted protein has higher activity and the nucleic acid fragments are longer.





								No cross-contamination

								The sample tubes are in a fully enclosed state during the crushing process and can use disposable centrifuge tubes and beads. The samples are kept intact in the tubes, avoiding cross-contamination between samples and external contamination.





								Simple operation

								1. Built-in program controller, which can set parameters such as grinding time and rotor vibration frequency;

								2. User-friendly operating interface.





								Good stability

								1. Using a vertical oscillation method, the grinding is more complete and the stability is better;

								2. During the instrument operation, the noise is less than 55dB, which will not interfere with other experiments or instruments.





								Convenient for low-temperature operation

								When a low-temperature grinding environment is needed, the adapter containing the sample can be immersed in liquid nitrogen for cooling for 1-2 minutes, then taken out and quickly fixed to the main unit for grinding, without the need for further freezing, saving liquid nitrogen.





								Good reproducibility

								The same program set for the same tissue sample yields the same grinding effect. The working time is short, and the sample temperature does not rise.





















									Technical Specifications







									Application field:

									Organic grinding, homogenization, cell disruption, tissue lysis, material dispersion, preparation, sample mixing, and oscillation





									Processing capacity:

									Maximum processing capacity of 24 samples at the same time within 15 seconds, including 12-well and 24-well liquid nitrogen cooling adapters





									Compatible sample tubes:

									24*(0.2-0.5ml) /24*2ml /12*(7-15)ml /2*25ml /2*50ml, various specifications of grinding tubes can be customized





									Display mode:

									LCD screen display, touch screen display (upgradeable)





									Anti-vibration principle:

									Innovative anti-vibration principle of Schleifen-1 from Germany and a three-dimensional motion of up and down, left and right shaking - innovative grinding ball motion mode to ensure maximum sample processing and instantaneous crushing effect





									Maximum feeding size:

									No requirement, adjustable according to the adapter





									Final particle size:

									~5µm





									Number of grinding platforms:

									(Acceptable number of grinding jars) >2





									Fastening device:

									With automatic centering





									Homogenization speed:

									0~70 Hz/second, working time: 0 seconds~99 minutes, user can set it by themselves





									Grinding ball diameter:

									0.02~30mm





									Grinding ball material:

									Alloy steel, chrome steel, zirconia, tungsten carbide, quartz sand





									Acceleration:

									Reaches maximum speed within 2 seconds





									Deceleration:

									Reaches minimum speed within 2 seconds





									Noise level:

									<55db





									Grinding mode:

									Wet grinding, dry grinding, and cryogenic grinding are all possible





									Temperature control can be additionally equipped with:

									The ability to upgrade to ultra-low temperature liquid nitrogen cooling or air cooling





									Adapter material:

									Polytetrafluoroethylene (PTFE), alloy steel





									Safety instructions:

									With an automatic centering locking device and safety lock during operation, full protection throughout





									Grinding kit material:

									Hardened steel, polytetrafluoroethylene (PTFE), zirconia





									Dimensions:

									41*34*55cm





									Weight:

									28 Kg





















										Single Page - Color Page









										Name:

										Author:

										Action:





										Fully Automated Liquid Nitrogen Freezer Mill DHFSTPRP-24IN

										homogenizer

										Download





















											Related products







											Name:

											Model:





											Fully Automated Liquid Nitrogen Freezer Mill

											DHFSTPRP-24IN





											Fully automatic liquid nitrogen cryogenic grinder

											DHFSTPRP-48IN


























	Product List












                	        DHFSTPRP-24IN
                            Unit





                	            Host Machine
                                Unit





                	            Adapters
                                set





                	            Cooling Adapter
                                Set





                	            Stainless steel grinding bead No.5
                                piece





                	            Zirconia Grinding Bead No.5
                                Piece





                	            Zirconia Grinding Bead No.3
                                Piece





                	            Special Grinding Tube
                                Piece





                	            Special Bead Loading Gun
                                Set





                	            Extraction kit: animal tissue-DNA
                                set





                	            Extraction kit: animal tissue-RNA
                                set





                	            Extraction kit: animal tissue-protein
                                set





                	            Extraction kit: plant tissue-DNA
                                set





                	            Extraction kit: plant tissue-RNA
                                set





                	            Extraction kit: plant tissue-protein
                                set





                	            Extraction kit: microbial DNA
                                set





                	            Extraction kit: microbial RNA
                                set





                	            Extraction kit: microbial protein
                                set






















            Description


            1
            ?2ml,1（2 in 1）
            ?2or?1.5ml,1（2 in 1）
            1000（2 in 1）
            1000（2 in 1）
            1000
            200
            1（Optional）
            LW-D-P1（Optional）
            LW-D-P2（Optional）
            LW-D-P3（Optional）
            LW-Z-P1（Optional）
            LW-Z-P2（Optional）
            LW-Z-P3（Optional）
            LW-W-P1（Optional）
            LW-W-P2（Optional）
            LW-W-P3（Optional）
