            • Sonics ultrasonic disperser
              •

            • VCX1500
              •

            • 1500W power, standard swing arm processing capacity of 20L.
              •











            • VCX1500
              •

            • Sonics ultrasonic disperser
              •

            • 1500W power, standard swing arm processing capacity of 20L.
              •

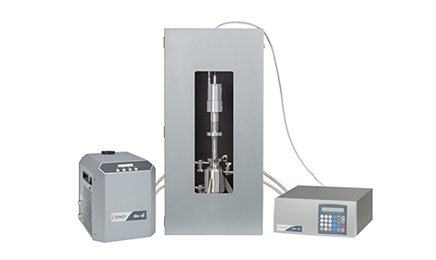

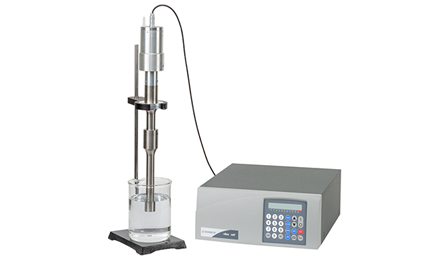

                        SONICS VCX1500 ultrasonic disperser is a 1500W ultrasonic processor and equipment that can batch install up to 20 liters of organic and inorganic materials. Typical applications include industrial mixing (including large-scale processing of nanomaterials) and industrial processing (including emulsification, degassing, and large-scale dispersion systems).




















						Product Introduction





						SONICS VCX1500 Sonics ultrasonic disperser is a 1500W ultrasonic processor and equipment that can batch install up to 20 liters of organic and inorganic materials. Typical applications include industrial mixing (including large-scale processing of nanomaterials) and industrial processing (including emulsification, degassing, and large-scale dispersion systems).





















							Product Features





							◆Batch processing of up to 20 liters





							◆Energy and temperature set-point control





							◆Automatic tuning

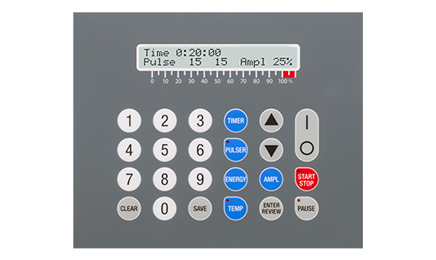

							◆Digital metering





							◆Full-featured process timer





							◆Remote processing capability





















								Technical Parameters







								Model:

								VCX 1500





								Frequency:

								20KHz





								Power:

								1500W





								Standard Swing Arm:

								Φ25mm





								Standard Swing Arm Length:

								230mm





								Standard Swing Arm Processing Capacity:

								20L





								Swing Arm Overall Dimensions:

								178 x 380 x 463.5 mm





								Swing Arm Material:

								Ti-6Al-4V Titanium Alloy





								Optional Swing Arm:

								Φ25mm





								Swing Arm Weight:

								1600g





								Swing Arm Cable Length:

								3m





								Duty Cycle:

								1-99%





								Power Adjustment Range:

								Continuously adjustable (15-1500w)





								Time Interval:

								0.1-99.9s





								Temperature Protection Setting:

								Available





								Power Amplitude Display:

								Available





								Operating Mode:

								Pulse/Continuous





								Power Supply:

								220/110V 50Hz/60Hz or Unless otherwise specified, the power requirements shall be sent at 117V, 50/60Hz.





								Net Weight:

								9.5kg





								Main Unit + Transducer Weight:

								10.18kg





















	Product List












                	        VCX1500
                            Unit





                	            Host Machine
                                Unit





                	            Toolbox
                                set





                	            Support Bracket
                                Set





                	            Temperature sensor
                                piece





                	            User manual
                                copy






















            Description


            1
            1
            Optional
            Optional
            1
