            • Sonics ultrasonic processors
            • VC750
            • Power 750W, standard amplitude rod processing volume from 50ml to 500ml.
            • VC750
            • Sonics ultrasonic processors
            • Power 750W, standard amplitude rod processing volume from 50ml to 500ml.

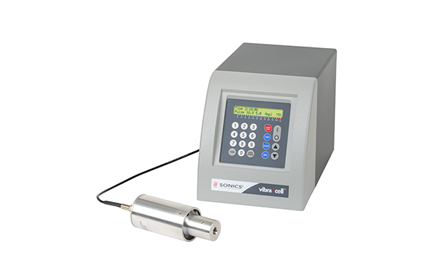

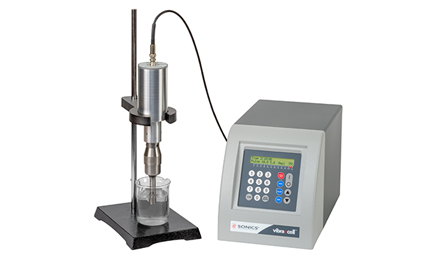

            Sonics ultrasonic processors VC750 is capable of safely processing various organic and inorganic materials ranging from 250 microliters up to 1 liter*. Typical applications include nanotechnology (production of nanoparticle materials and graphene dispersions), cell lysis, sample preparation, homogenization, ChIP assay, emulsification, dispersion, and degassing, as well as applications in the field of sonochemistry liquid processing.
            Product Introduction
            Sonics ultrasonic processors VC750 is capable of safely processing various organic and inorganic materials ranging from 250 microliters up to 1 liter*. Typical applications include nanotechnology (production of nanoparticle materials and graphene dispersions), cell lysis, sample preparation, homogenization, ChIP assay, emulsification, dispersion, and degassing, as well as applications in the field of sonochemistry liquid processing.


            Product Features
            ◆Energy monitor
            ◆Digital power meter
            ◆Integrated temperature controller to prevent overheating of samples, monitoring and controlling sample processing temperature in the range of 1℃ to 100℃
            ◆Based on microprocessor and programmable technology
            ◆10-hour process timer
            ◆Independent on/off pulse generator
            ◆Variable power output control


            Experiment Objectives
            1. Understand the basic principles of ultrasonic cell disruption
            2. Master the basic techniques of ultrasonic cell disruption


            Experimental Principle
            When strong sound waves act on a solution, the cavitation phenomenon of bubble generation, growth, and fragmentation is related to the cell lysis. The shock wave and shear force caused by the cavitation phenomenon cause the cells to break.
            Materials and Reagents
            10ml bacteria, beaker, crushed ice, 75% alcohol cotton ball.


            Probe Selection
            Probe Model and Size Capacity for Cell Disruption
            2mm 150ul-5ml
            3mm 250ul-10ml
            6mm 10ml-50ml
            10mm 10ml-250ml
            13mm 50ml-500ml


            Technical Parameters
            Model: VC 750
            Frequency: 20KHz
            Power: 750W
            Standard amplitude bar: Φ13mm
            Standard amplitude bar length: 136mm
            Amplitude bar overall size: 235 x 190 x 340 mm
            Amplitude bar material: Titanium alloy Ti-6Al-4V
            Standard amplitude bar processing capacity: 50ml to 250ml
            Optional amplitude bars: Φ2mm, Φ3mm, Φ6mm, Φ10mm
            Amplitude bar weight: 900g
            Crushing capacity: 50-500ml
            Duty cycle: 1-99%
            Power adjustment range: Continuously adjustable (20-750w)
            Interval time: 0.1-99.9s
            Temperature protection setting: /
            Power amplitude display: Yes
            Working frequency range: Energy monitor digital wattmeter, automatic tuning and automatic amplitude compensation
            Working time: Microprocessor-based - programmable 10-hour timer 1-59 second independent/on/off pulse
            Ultrasonic time: From 1 second to 10 hours
            Working mode: Interval/continuous
            Power supply: 220/110V 50Hz/60Hz or 117V, 50/60Hz unless otherwise specified
            Net weight: 6.8kg
            Main unit + transducer weight: 3680g
            Product List
            VC750 Unit
            Host Machine Unit
            Toolbox set
            Power cord piece
            Soundproof box set
            Special Crushing Cup Piece
            User manual copy
            Description
            1
            1
            1
            Optional
            Optional
            1
